itelite cPAT24019dual Cambium ePMP Panel 2.4GHz 19dBi DP

itelite cPAT24019dual Cambium ePMP Panel 2.4GHz 19dBi DP

SKU:
cPAT24019dual
Availability:
In stock Items usually ship within 24 hours, see our stock policy.
$85.00
(No reviews yet)
Weight:
2.00 LBS
Current Stock:
Adding to cart… The item has been added
Description

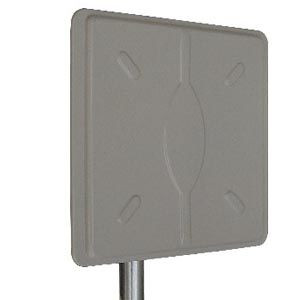

Panel antenna working in 2.4 GHz frequency with full 14 dBi gain. It can be mounted for horizontal or vertical
polarization. Made with very high quality materials, construction grade aluminium alloy, UV-protected plastic
cover and zinc galvanized U-bolt. Designed for operation under severe weather conditions. A proper materials
allow operation in the salt water environment without corrosion. Heavy-duty mounting elements guarantee an
easy elevation adjust as well as rock-stable operation. It can be used in client stations and as a small base
stations.

Electrical Properties

Frequency
2.4 - 2.5 GHz
Gain
14dBi
Polarization
horizontal or vertical
Beamwidth deg horizontal
38°
Beamwidth deg vertical
38°
VSWR
<1,7
Impedance
50 ohm
Front to back ratio
> 35dB
Lightning protection:
DC ground

Enclosure Properties

Technology:
Microstrip
Material:
UV protected
Colour:
White
Ingress Protection (EN 60529):
IP 66
Min temperature:
-40°C / -40°F
Max temperature:
80°C / 176°F

Mechanical Properties

Input Connector
N-type / female
Outsite Dimensions
169x169x20mm /
Weight
0.6kg / 1.3lbs
