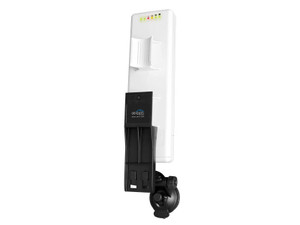

NanoStation M5
Ubiquiti
$89.00
Featuring a panel antenna and dual-polarity performance, the NanoStation®M is ideal for Point-to-MultiPoint (PtMP) applications requiring high-performance CPE devices with a sleek form factor.
- Dimensions:
- 294 x 31 x 80 mm (11.57 x 1.22 3.15")
- Weight:
- 400 g (14.11 oz)
- Power Supply (PoE):
- 24v, 0.5A
- Max. Power Consumption:
- 8W
- Power Method:
- Passive PoE (Pairs 4, 5+; 7, 8 Return)
- Worldwide Operating Frequency:
- 5170-5875 MHz
- USA Operating Frequency:
- 5725-5850 MHz
- USA Operating Frequency (Dynamic Frequency Selection):
- 5250-5850 MHz
- Gain:
- 14.6-16.1 dBi
- Networking Interface:
- (2) 10/100 Ethernet Ports
- Processor Specs:
- Atheros MIPS 74Kc, 560 MHz
- Memory:
- 64 MB DDR2, 8 MB Flash
- Frequency:
- 5 GHz
- Cross-pol Isolation:
- 22 dB Minimum
- Max. VSWR:
- 1.6:1
- Beamwidth:
- 43° (H-pol) / 41° (V-pol) / 15° (Elevation)
- Polarization:
- Dual Linear
- Enclosure:
- Outdoor UV Stabilized Plastic
- Mounting:
- Pole-Mount (Kit Included)
- Operating Temperature:
- -30 to 75° C (-22 to 167° F)
- Operating Humidity:
- 5 to 95% Noncondensing
- Wireless Approvals:
- FCC Part 15.247, IC RS210, CE
- RoHS Compliance:
- Yes
- Shock & Vibration:
- ETSI300-019-1.4
Related Products
Reviews
-
Great reliability and range
Excellent interface with link info, readouts, great java program that it can launch to show you wireless channel and spectrum readout. Using to bridge two buildings ~300 ft apart, working great for a few weeks now. About 240MBPS link all the time with no drop outs or AP resets (which previous equip of two brands had) and no latency. Had to turn both AP power down all the way as they were two powerful out of the box. Would recommend again for even further distances.
-
Point to Point That Works
Highly reliable point to point connectivity. Easy to configure. Priced right. What more be said?
-
Very capable hardware for the cost.
Disapointed in the manufacturer for completly ignoring end users, but some companies simply do not care about their clients and focus on moving hardware. Ubiquity appear to be one of those companies. The hardware on the other hand seems to be fantastic so far, and the distributor is fantastic.
